When working with electrical circuits or experimenting with different components in labs, having the right connectors is essential. One such versatile tool is the alli gator clip, a small yet powerful device that plays a significant role in ensuring temporary and secure connections in various applications. Whether you’re in a workshop, classroom, or lab, alligator clips offer an effective, reliable, and often inexpensive solution for quick electrical connections.
This article will explore alli gator clips in-depth, their design, uses, types, and safety considerations. By the end, you’ll have a solid understanding of how to utilize alli gator clips in various settings, from hobbyist projects to professional electrical work.
What is an Alligator Clip?

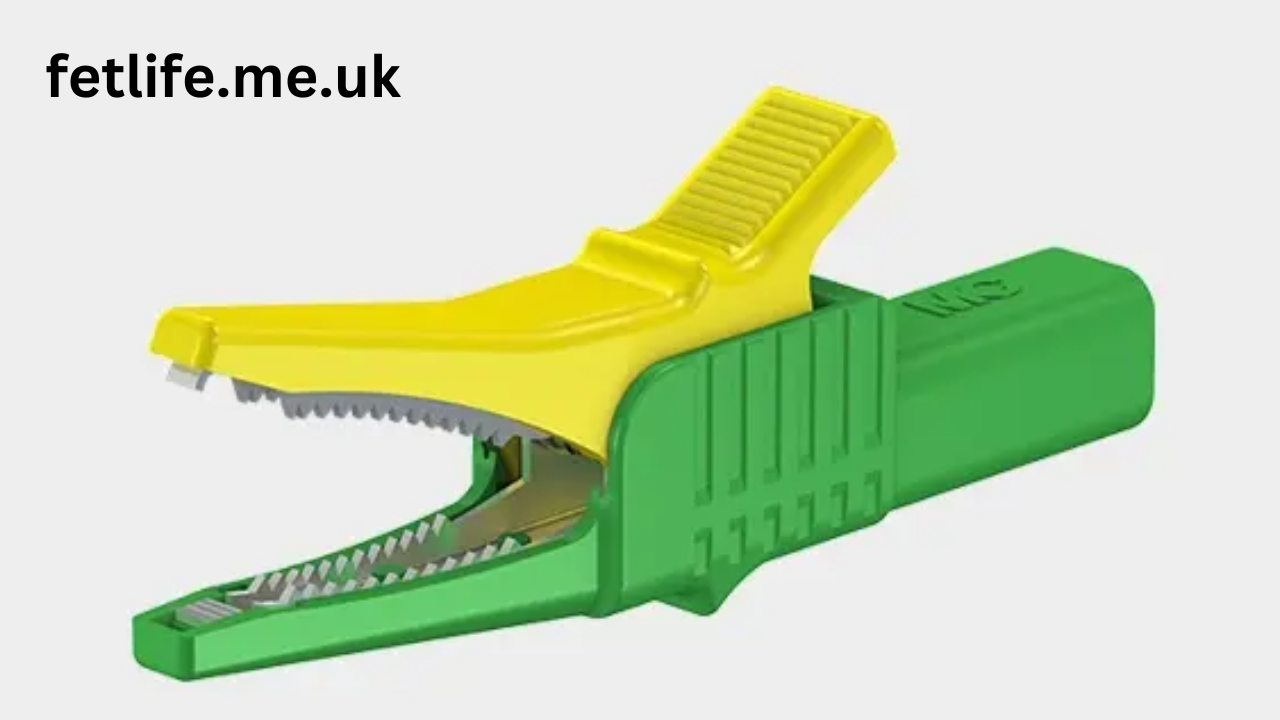

An alli gator clip is a type of spring-loaded electrical connector that is often used for making temporary connections in circuits. The device consists of two metal jaws shaped to resemble an alligator’s mouth, hence the name. These jaws are typically serrated, providing a strong grip when they are attached to a wire or terminal. When you squeeze the clip, the jaws open, allowing it to attach to a target. When you release it, the spring mechanism closes the jaws, creating a firm connection.
Alligator clips are commonly used in both electrical and electronic applications, providing a quick and safe means of connection. Due to their design, they are excellent for testing, prototyping, and other situations where you need to establish a temporary link.
The Design of an Alli gator Clip
The alli gator clip’s design may appear simple, but it incorporates key elements that make it effective:
- Serrated Jaws: The teeth on the clip are what give it a strong grip. These ridges allow it to hold onto a wire or terminal securely, ensuring a stable electrical connection. The serrated edges also improve conductivity by minimizing the resistance between the clip and the contact point.
- Spring Mechanism: A small, internal spring forces the jaws to close when the clip is not being squeezed, providing constant pressure to ensure a tight connection. The spring is usually made of high-tensile steel for durability and strength.
- Insulated Coating: In many alligator clips, especially those designed for safety, the metal clip is covered with a plastic or rubber coating. This insulation prevents accidental electrical shocks and helps avoid short circuits when used in environments with live wires.
- Clamping Mechanism: The clip’s jaws are controlled by a lever-like clamping mechanism. When squeezed, the jaws open to attach to a target, and when released, they close. This mechanism enables easy attachment and detachment of the clip.
- Material: Most alli gator clips are made from durable metals like copper or steel, which provide excellent conductivity. The metallic parts may be nickel-plated or have a copper finish to reduce corrosion and increase longevity.
Types of Alli gator Clips
Alli gator clips are available in various designs and sizes, each suited for specific applications. Below are the most common types:
1. Standard Alligator Clips
These are the most basic and widely used type of alli gator clips. They typically feature a simple spring mechanism and come in a range of sizes. Standard alli gator clips are commonly used for everyday tasks such as connecting wires for electrical testing or temporary circuit creation.
2. Miniature Alli gator Clips
Miniature alli gator clips are smaller versions of the standard type. They are perfect for applications where space is tight or when dealing with delicate components like small wires or fragile circuit boards. These clips are often used in laboratory settings for precise experiments or in situations where the connection needs to be made without disturbing the surrounding components.
3. Heavy-Duty Alli gator Clips
These clips are designed to handle high-current and heavy-duty electrical work. They are typically larger and feature more robust jaws to clamp onto larger wires and cables. Heavy-duty alligator clips are commonly found in car batteries or industrial settings where the amount of current is substantial.
4. Insulated Alli gator Clips
Insulated alli gator clips are covered with a protective plastic coating, reducing the risk of electrical shocks. These are especially useful when working with live circuits or in environments where safety is a priority. Insulated alli gator clips can be found in red, black, or other colors to differentiate between positive and negative connections in electrical work.
Previous article; The Rise of the short sleeve hoodie A New Essential for Every Wardrobe
5. Test Leads with Alli gator Clips
Test leads often come with alli gator clips on either end, which can be connected to various measurement devices such as multimeters or oscilloscopes. These alli gator clips provide a secure connection to test points while allowing for flexibility during testing and troubleshooting.
Uses of Alligator Clips
Alli gator clips have a wide range of applications due to their versatility, simplicity, and effectiveness. Here are some common uses:
1. Electrical and Electronic Testing
One of the primary uses of alli gator clips is in electrical testing. They are used to connect multimeter leads to different components, enabling technicians to measure voltage, current, and resistance in a circuit. Because the clips provide a stable and temporary connection, they are ideal for performing tests without making permanent alterations to the circuit.
2. Breadboarding and Prototyping
In electronics prototyping, breadboards are often used to create temporary connections between various components. Alli gator clips are essential for connecting components on a breadboard, allowing creators to experiment and test designs before committing to a final build. The clips make it easy to modify connections as needed without soldering.
3. Jump-Starting Cars
Alli gator clips are an essential part of jumper cables used for jump-starting vehicles. The clips are attached to the terminals of the car battery, allowing the electrical current to flow between the batteries. The spring mechanism in the alligator clip ensures a tight, secure connection, minimizing the risk of sparks or incomplete connections.
4. Laboratory Work
In scientific laboratories, alli gator clips are commonly used for connecting wires, circuits, and components in experimental setups. They allow for quick adjustments to the setup without the need for permanent soldering. The small, portable nature of the clips makes them perfect for educational experiments, particularly when demonstrating basic electrical principles.
5. DIY Projects and Hobbies
For hobbyists working on DIY projects, especially those involving electronics or small-scale electrical work, alli gator clips are a convenient tool. Whether you are assembling a model, building a remote-control device, or working on a home automation project, alli gator clips make it easier to create temporary connections and troubleshoot problems.
6. Automotive Applications
Alli gator clips are also used in various automotive applications beyond jump-starting. They can be used to connect diagnostic equipment to a vehicle’s electronic systems, such as an OBD-II scanner. Additionally, they can be used for testing components like alternators, batteries, and fuses.
Safety Considerations When Using Alligator Clips
While alli gator clips are generally safe to use, there are some safety precautions to keep in mind:
1. Avoid Short Circuits
When using alli gator clips, especially in circuits with high voltage, it’s important to ensure that the clip is not connecting to unintended conductors. A short circuit can cause sparks, damage to components, or even electrical fires. Make sure the clip is securely attached to the proper connection point.
2. Insulated Alli gator Clips for Live Circuits
When working with live circuits, always use insulated alli gator clips. The insulation helps prevent accidental contact with other conductive materials, reducing the risk of electric shock. Insulated clips also protect against damaging the surrounding components.
3. Check for Damage
Before using any alligator clip, inspect it for wear or damage. Worn-out jaws or broken springs can make the clip ineffective or unsafe. Additionally, if the insulation is cracked or peeling, replace the clip immediately to avoid electrical hazards.
4. Proper Handling
When handling alli gator clips, avoid squeezing them too tightly, as this can cause damage to the spring mechanism. Additionally, never touch the metal parts of an alli gator clip when it is connected to a live electrical circuit. Always use insulated handles if possible.
Conclusion
Alligator clips are indispensable tools in a wide variety of applications. Their simplicity and functionality make them essential for both amateur and professional use in the fields of electronics, automotive, and electrical testing. Whether you’re testing a circuit, prototyping a new device, or jump-starting a car, an alli gator clip can provide a reliable, temporary connection that makes tasks easier and more efficient.
By understanding the design, types, uses, and safety precautions associated with alli gator clips, you can make the most of this versatile tool in your projects and work. Remember to always choose the right type of alli gator clip for the task at hand, and take care to handle them safely to avoid any accidents. Whether you’re a student, hobbyist, or seasoned technician, alli gator clips are a must-have in your toolkit.
